The Types of Conveyance Chain?

Views: 0     Author: Site Editor     Publish Time: 2025-07-15      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Have you ever wondered how industries manage to transport heavy materials with ease? The answer lies in the versatile conveyance chain.

A conveyance chain plays a critical role in various industrial applications, ensuring smooth and reliable material transport. From manufacturing to agriculture, these chains are vital for keeping operations efficient.

In this post, we’ll explore the different types of conveyance chains, their materials, and their importance across industries. You'll learn how choosing the right chain can improve the efficiency of your operations.

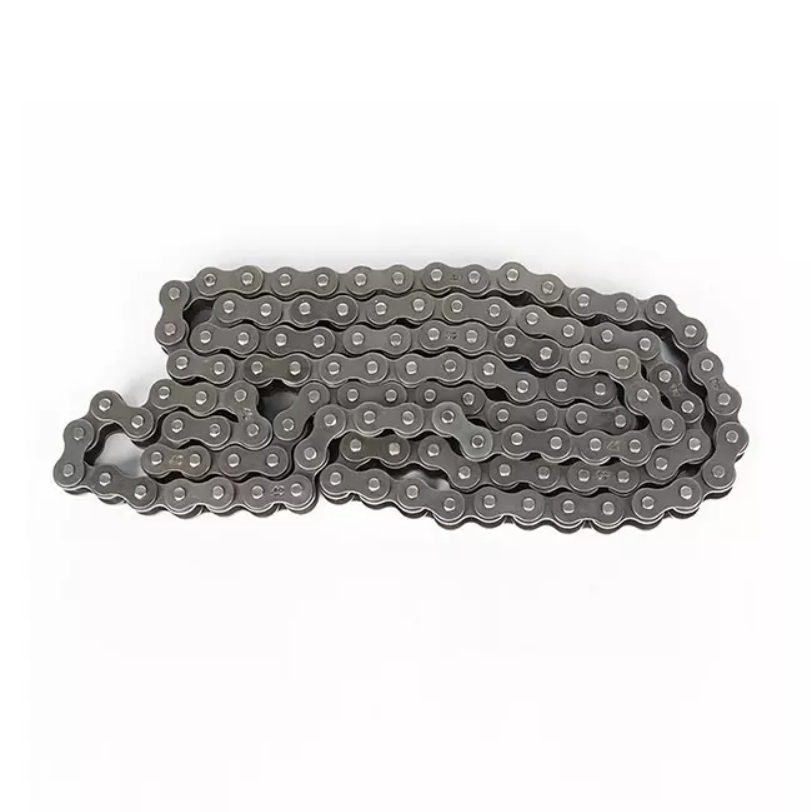

Roller Chain for Industrial Machinery

Materials Used in Conveyance Chains

Conveyance chains are designed to withstand heavy loads and harsh environments, which is why the materials they’re made of are so important. The most common materials for conveyance chains include carbon steel and stainless steel, each offering unique advantages depending on the specific needs of the application.

Carbon Steel vs. Stainless Steel Conveyance Chains

Carbon steel is a popular choice due to its durability and cost-effectiveness. However, stainless steel may be a better option in some cases due to its resistance to corrosion. Here’s a breakdown:

Material

Pros

Cons

Carbon Steel

Strong, cost-effective, widely used

Prone to rust, not suitable for corrosive environments

Stainless Steel

Highly resistant to corrosion, long-lasting

More expensive, heavier than carbon steel

Why is Carbon Steel Popular for Conveyance Chains?

Carbon steel chains are widely used in industries due to their durability and strength. They offer a strong tensile strength, making them ideal for heavy-duty tasks. Carbon steel chains are also relatively affordable, which makes them a good option for large-scale operations.

Common Use Cases for Carbon Steel Chains:

● Manufacturing processes where heavy components are moved.

● Conveyor systems for industries that don’t require corrosion resistance.

● General material handling in warehouses or factories.

When is Stainless Steel the Better Option?

While carbon steel is great for most applications, stainless steel shines in environments where exposure to moisture or chemicals is common. It’s highly resistant to rust and corrosion, making it the go-to material in certain industries.

Typical Use Cases for Stainless Steel Chains:

● Food processing plants, where hygiene is critical.

● Pharmaceutical industries that require high cleanliness standards.

● Outdoor applications where weather conditions can cause rapid rusting of other materials.

High-Strength Carbon Steel Chains

For particularly heavy-duty tasks, high-strength carbon steel chains, such as those made from 40MN steel, are preferred. These chains offer enhanced durability and can handle larger loads and more demanding environments.

Advantages of High-Strength Carbon Steel Chains:

● Greater load-bearing capacity.

● Enhanced resistance to wear and tear.

● Suitable for high-impact and heavy-duty conveyance tasks.

These high-strength chains are essential when dealing with large volumes or extremely heavy materials, ensuring the reliability and longevity of the conveyor system.


Key Features of Conveyance Chains

Conveyance chains must be durable, reliable, and able to perform under continuous operation. Several key features determine their effectiveness, including strength, durability, and design factors like chain plate thickness and roller diameter.

What Are the Essential Features of a Conveyance Chain?

The main features of a conveyance chain are its high strength and tensile strength. These qualities ensure the chain can handle heavy loads without breaking or stretching. Durability is also crucial for continuous use in demanding environments.

Key Features:

● High Strength & Tensile Strength: Ensures the chain can handle heavy loads.

● Durability: The chain can withstand long periods of operation without failure.

● Longevity: High-quality chains last longer, reducing replacement costs.

How Does Deep Quenching and Body Hardening Improve Performance?

Deep quenching and body hardening are heat treatment processes used to enhance the properties of conveyance chains. Deep quenching involves heating the steel to high temperatures and rapidly cooling it, making the material harder. Body hardening strengthens the internal structure of the chain, improving its resistance to wear.

Benefits of These Processes:

● Improved Wear Resistance: These treatments make the chain more resistant to friction and abrasion.

● Longer Service Life: The chain lasts longer, reducing the frequency of replacements.

How Do Chain Plate Thickness and Roller Diameter Affect Performance?

The chain plate thickness directly affects the strength of the chain. Thicker plates can bear higher loads and withstand more stress. The roller diameter impacts the smoothness of movement and efficiency in the conveyor system. Larger rollers reduce friction, improving performance.

Impact of Thicker Chain Plates and Larger Roller Diameters:

● Thicker Chain Plates: Increase load-bearing capacity and overall strength.

● Larger Roller Diameters: Improve the smoothness and efficiency of chain movement, reducing wear on both the chain and track.

These design features contribute to the overall performance of the chain, ensuring it meets the needs of heavy-duty and continuous operations.


Types of Conveyance Chains

Conveyance chains come in different types, each designed for specific applications and load requirements. The most common types are roller chains, link chains, and flat top chains. Each type has unique features, making them suitable for different tasks and industries.

What Are the Different Types of Conveyance Chains?

1.  Roller Chains: Known for their versatility and reliability. Often used in lighter, high-speed applications.

2.  Link Chains: Ideal for heavy-duty, high-load applications, offering strength and durability.

3.  Flat Top Chains: Feature a flat surface and are perfect for assembly lines or where products need to stay flat during transport.

What Is the Purpose of a Roller Chain in Conveyance?

Roller chains are commonly used in high-speed, low-load systems. Their design features, such as pitch, roller diameter, and tensile strength, allow them to move materials quickly and efficiently.

Design Features of Roller Chains:

● Pitch: Determines the distance between links. Smaller pitch allows for smoother movement in high-speed systems.

● Roller Diameter: Affects friction and load-bearing capacity. Larger rollers distribute the load better, reducing wear.

● Tensile Strength: Ensures the chain can handle the required load without stretching or breaking.

How Are Link Chains Used in Conveyance Systems?

Link chains are ideal for heavy-duty applications. Their strong links and robust construction make them suitable for transporting large, heavy materials in demanding environments.

Common Industries Using Link Chains:

● Manufacturing plants with heavy equipment.

● Mining and construction industries where durability is key.

● Warehouses and logistics for moving large volumes of materials.

Flat Top Chains: What Are They and When to Use Them?

Flat top chains feature a flat surface, making them ideal for assembly lines and packaging applications. Their design ensures that materials stay level and stable during transport, especially in tasks requiring precise positioning.

Features and Design Benefits of Flat Top Chains:

● Provides stability for flat items or containers.

● Ideal for moving materials that need to stay in a fixed position.

● Commonly used in industries like food processing, automotive assembly, and packaging.

Customizable Conveyance Chains

One of the key advantages of conveyance chains is their customizability. You can adjust the chain length, pitch, roller diameter, and plate thickness to meet the specific requirements of your system.

Benefits of Customizable Chains:

● Flexible length options for adapting to various conveyor sizes.

● Tailored pitch and diameter for optimized performance in different load and speed conditions.

● Custom plate thickness for additional strength in heavy-duty applications.

Customizable conveyance chains allow industries to fine-tune their systems for maximum efficiency and reliability.


Performance and Design Parameters

The performance of a conveyance chain depends on several critical design parameters. These parameters, such as pitch, plate thickness, and pin diameter, influence the chain's ability to perform efficiently under different conditions.

What Are the Key Design Parameters for Conveyance Chains?

Key design parameters for conveyance chains include:

● Pitch: The distance between consecutive chain links. It directly affects load capacity and speed.

● Plate Thickness: Both inner and outer plate thicknesses contribute to the overall strength of the chain.

● Pin Diameter: The diameter of the pins connecting the links. This affects the chain's strength and reliability.

How Does Pitch Influence Conveyance Chain Performance?

Pitch plays a crucial role in determining how well a chain can handle varying loads and speeds. Smaller pitch chains are ideal for high-speed, low-load systems, as they provide smoother movement. Larger pitch chains, on the other hand, are better for slower, heavy-duty applications.

Small Pitch Chains:

● Better for high-speed conveyance.

● Suitable for low-load applications.

Large Pitch Chains:

● Handle heavier loads.

● Used in slower, more demanding systems.

Custom Lengths: Why Are They Important in Conveyance Chains?

The ability to customize the length of a conveyance chain offers great flexibility for adapting to various conveyor system sizes. Custom lengths ensure that chains fit perfectly into any system, whether it’s a short-distance conveyor or a long-range one.

Choosing the Right Length:

● Custom lengths help avoid the need for modifications to existing conveyor setups.

● The correct length ensures optimal performance and reduces wear.

Choosing the Right Pin Diameter

The pin diameter influences how securely the links are connected. A larger pin diameter increases the connection strength between links, making the chain more durable and reliable.

Why Larger Pin Diameters Matter:

● They provide a stronger connection, reducing the risk of failure.

● Larger pins enhance the overall strength and reliability of the chain, making it more suitable for heavy-duty tasks.


Comparing Conveyance Chain Products

When choosing a conveyance chain, it’s essential to consider the differences between manufacturers. Variations in materials, manufacturing processes, and cost can significantly impact the performance and price of a chain. Additionally, more advanced designs often come with higher manufacturing costs but improved performance.

How Do Different Conveyance Chain Manufacturers Compare?

Manufacturers often offer different options based on materials, production methods, and precision. Here's a look at how these factors compare:

Factor

Low-Cost Manufacturers

High-End Manufacturers

Materials

Standard carbon steel

Premium materials like stainless steel

Manufacturing Process

Basic techniques

Advanced, high-precision machining

Cost

More affordable

Higher due to precision and material quality

Key Points:

● Materials: Premium manufacturers use higher-grade materials, such as stainless steel, for better corrosion resistance.

● Manufacturing Processes: High-end chains benefit from precision machining, providing longer-lasting products.

● Cost: While premium chains cost more, they tend to have better performance and durability.

What Are Some Innovative Designs in Conveyance Chains?

Manufacturers are continually improving conveyance chain designs to increase efficiency and adapt to more specific applications. Some of the innovative features include:

● Special-shaped Chain Plates: These unique shapes help improve grip and stability for certain types of materials.

● Modified Roller Structures: Adjusting the roller structure can reduce friction and enhance the chain’s ability to handle different load types.

These designs improve conveyance efficiency by ensuring smoother operations and reducing wear on both the chain and the conveyor system.

How Does Manufacturing Process Influence Chain Precision?

The manufacturing process has a huge effect on the chain's precision. Precision machining ensures that each link fits together perfectly, reducing friction and improving overall performance.

Importance of Precision in Manufacturing:

● Higher precision results in smoother operation, reduced wear, and better load distribution.

● Precision machining reduces the tolerance between components, leading to a more reliable and efficient system.

When comparing chains from different manufacturers, precision can be the deciding factor in performance, especially in high-speed and heavy-duty applications.


Application of Conveyance Chains Across Industries

Conveyance chains play a vital role across various industries by ensuring materials and components are moved efficiently and safely. From manufacturing to agriculture, these chains are essential for smooth operations in many different applications.

How Are Conveyance Chains Used in Manufacturing?

In manufacturing, conveyance chains are integral to assembly lines, packaging, and production systems. They move materials, components, and finished products efficiently throughout the production process, ensuring that everything stays on track and is processed without delay.

Common Uses in Manufacturing:

● Assembly Lines: Conveyance chains carry parts through different stages of assembly.

● Packaging: Used to transport packaged products to the next step in the production process.

● Production Systems: Move bulk materials or parts that need to be processed further.

Conveyance Chains in Agriculture: What Are Their Roles?

In agriculture, conveyance chains are used for a variety of tasks, such as transporting grains, packaging, and even farm equipment. These chains ensure that crops are handled efficiently and safely, from harvest to storage and packaging.

Applications in Agriculture:

● Transporting Grains: Conveyance chains help move harvested crops to storage or processing facilities.

● Packaging: Used in the packaging of agricultural products for distribution.

● Farm Equipment: Conveyance systems move farm equipment or tools around fields or processing areas.

Automotive Industry and Conveyance Chains: What’s Their Role?

In the automotive industry, conveyance chains are widely used in assembly line conveyance and component transportation. These chains help move car parts through various stages of assembly, ensuring efficiency and accuracy in the production of vehicles.

Role in Automotive Industry:

● Assembly Lines: Transport car parts and assemblies from station to station.

● Component Transportation: Help move smaller parts through different stages of the manufacturing process.

Food Industry: Why Are Stainless Steel Conveyance Chains Crucial?

In the food industry, conveyance chains made of stainless steel are critical due to their corrosion resistance and hygiene properties. These chains are essential in food processing plants where cleanliness is paramount and environmental conditions are harsh.

Why Stainless Steel Chains Matter in Food Processing:

● Hygiene: Stainless steel is easy to clean and resistant to bacteria growth, making it ideal for food handling.

● Corrosion Resistance: Stainless steel can withstand moisture, chemicals, and high temperatures commonly found in food production.

● Smooth Production Flows: Stainless steel chains ensure a smooth and efficient flow of materials in food production lines.

Additional Industries Using Conveyance Chains

Beyond manufacturing, agriculture, automotive, and food industries, conveyance chains are used in various other fields such as material handling, logistics, and mining operations. These chains help transport materials efficiently in environments where strength and reliability are essential.

Applications in Other Industries:

● Material Handling: Used in factories, warehouses, and logistics centers to move bulk goods.

● Logistics: Help move goods and packages within distribution centers.

● Mining Operations: Transport raw materials, ores, or extracted resources in mining environments.

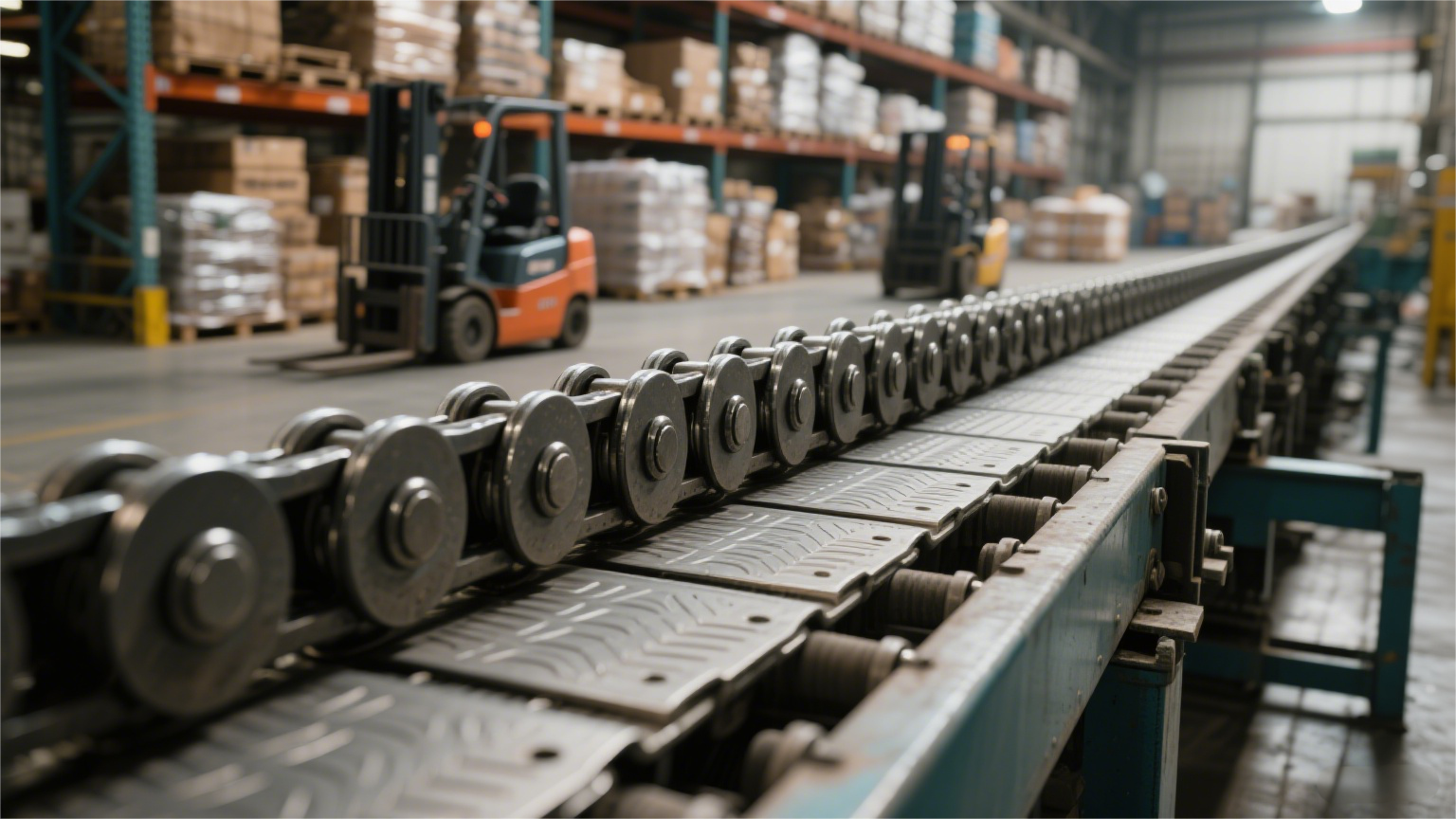

Conveyance Chain

Troubleshooting and Maintenance of Conveyance Chains

Proper maintenance and timely troubleshooting are crucial to ensure the longevity and efficiency of conveyance chains. Regular inspections, lubrication, and cleaning are essential practices to keep the chains running smoothly and avoid costly downtime.

How to Maintain Your Conveyance Chains for Optimal Performance?

To ensure your conveyance chains perform at their best, follow these key maintenance practices:

● Regular Inspection: Periodically check for signs of wear, stretching, or misalignment.

● Lubrication: Apply lubricant to reduce friction and prevent premature wear.

● Cleaning: Keep the chains clean from dirt, debris, and other contaminants that could interfere with their performance.

What Are Common Issues with Conveyance Chains and How to Fix Them?

Conveyance chains can face several common issues, including wear, stretch, and breakage. These issues can lead to inefficient operation or even system failure if not addressed promptly.

Common Issues and Solutions:

● Chain Wear: Caused by friction and poor lubrication.Solution: Regular lubrication and timely inspection for worn-out links.

● Chain Stretch: Occurs when the chain elongates over time due to load and use.Solution: Check tension regularly and replace chains if the stretch is beyond acceptable limits.

● Breakage: Can occur from excessive load or lack of maintenance.Solution: Avoid overloading the system and replace broken chains immediately.

When Should You Replace Your Conveyance Chains?

Chains should be replaced when they show signs of significant wear or damage. Pay attention to the following indicators to determine when it’s time for a replacement:

● Visible Damage: Cracks or broken links.

● Excessive Stretch: When the chain no longer fits properly or moves efficiently.

● Noise or Vibration: Unusual sounds or vibrations during operation indicate potential wear or misalignment.

How Often Should Chains Be Replaced? The frequency of replacement depends on the system's usage and load. In heavy-duty applications, chains may need replacement every 1-2 years, while lighter systems may last longer.

Preventing Chain Wear and Tear

To avoid the need for frequent replacements, practice proper maintenance and ensure correct usage:

● Regular Maintenance: Keeping up with inspections and lubrications prevents small issues from turning into big problems.

● Proper Lubrication: Ensure that the chain is always well-lubricated to minimize friction and wear.

● Correct Usage: Avoid overloading the system, as this can cause undue strain on the chain and lead to premature failure.

Proper care not only extends the life of the chain but also improves its overall efficiency and reliability in the system.


Conclusion: Choosing the Right Conveyance Chain

When selecting a conveyance chain, consider factors like load capacity, speed, material, and environmental conditions. Choosing the right chain ensures smooth operation and long-term performance.

In conclusion, selecting the appropriate chain and maintaining it properly will enhance efficiency and extend its lifespan. Regular maintenance is key to optimal performance in various industrial settings.

Foshan Grace Machinery Co., Ltd. specializes in the research and development, production and sales of machinery accessories.

Quick Links

Product Category

Contact Us

FOSHAN GRACE MACHINERY CO., LTD.
Add: 219-8, 2ND FLOOR, NO.23 FENGSHAN WEST ROAD,JINBANG COMMUNITY,DALIANG STREET, SHUNDE DISTRICT, FOSHAN, GUANGDONG CHINATEL: +86-757-27889267
FAX: +86-757-27883967
Mobile :+86-18902569571
Wechat : +86-18902569571
WhatsAPP: +86-18902569571
SKYPE: aliceniu718
E-mail: alice@grace-machinery.com
Contact: alice niu
WhatsApp
WhatsApp QR Code
WeChat Wechat QR Code
Copyright © 2023 Foshan Grace Machinery Co., Ltd. All rights reserved.  Support by leadong.com   Privacy Policy
