What Is The Difference between A Handwheel And A Hand Crank?

You often see a handwheel or a hand crank on industrial machines, but these two devices work differently. A handwheel allows you to control movement smoothly by turning it, making it ideal for precise adjustments in machinery. Studies show that using the correct manual control device, like a handwheel, can improve performance and keep you safe. Many industries rely on handwheels because they offer comfortable grip and reduce strain. Choosing the right device helps you get the best results and protects your health.

Key Takeaways

• Handwheels provide smooth, precise control for fine adjustments on machines, making them ideal for tasks that need accuracy and comfort.

• Hand cranks convert rotary motion into other movements, offering more power and speed for lifting or moving heavy loads quickly.

• Choose a handwheel when you need careful control and ergonomic comfort, especially for valves and machine tools.

• Use a hand crank for fast, forceful tasks like winching or lifting where speed and leverage matter more than precision.

• Selecting the right device improves safety, performance, and reduces strain, so match your choice to your specific task and environment.

Definitions

Handwheel

You often see a handwheel on machines that need precise manual control. In mechanical engineering, a handwheel is a wheel that you install on manually operated valves to open or close them. The design usually includes spokes and a rim, which help you get a better grip. This shape lets you turn the wheel smoothly and make small, accurate adjustments. You can use a handwheel to override automatic systems and take direct control, especially during startup or emergencies. Many industries, such as oil and gas, power generation, and chemical processing, rely on handwheels to regulate flow by manual rotation. You might also find them on machine tools, milling machines, and grinders. The mounting style can change based on the type of machine or valve. When you use a handwheel, you should not feel extra friction, so the movement stays smooth and easy.

Tip: Look for handwheels with ergonomic handles or special materials if you want more comfort and durability during long periods of use.

Hand Crank

A hand crank works differently from a handwheel. You use a hand crank to turn rotary motion into another type of movement, such as linear or reciprocating motion. The design usually features a handle attached to a rotating shaft. When you grip the handle and turn it, you create power that moves parts of a machine. Hand cranks often appear on devices like winches, jacks, or old-fashioned pencil sharpeners. You might use a hand crank when you need to lift, lower, or move something with more force than a handwheel can provide. The handle gives you leverage, so you can generate more torque with less effort. Hand cranks are common in both industrial and everyday tools, making them a practical choice for many manual tasks.

Key Differences

Design

You will notice clear differences in the design of handwheels and hand cranks. Handwheels come in many shapes and sizes, such as spoked, flat, solid, or dished styles. You can find small handwheels for finger control or large ones that need both hands. Manufacturers use materials like plastic for light-duty tasks or cast iron for heavy-duty needs. Many handwheels include ergonomic features, such as finger grips or handles that revolve or fold away. These features help you work comfortably and safely, even during long shifts.

Hand cranks, on the other hand, usually have a simple design. You see a handle attached to a shaft, which you turn to create motion. The handle gives you leverage, but you do not get the same range of ergonomic options as with handwheels. Most crank handles focus on speed and force rather than comfort or grip variety.

Tip: If you want better comfort and control, choose a handwheel with ergonomic grips or a revolving handle.

Mechanism

When you use a handwheel, you control rotary motion directly. This design lets you make fine adjustments and precise movements. For example, in CNC machines, electronic handwheels offer high resolution and smooth operation. You can set exact positions with little effort. The larger diameter and ergonomic grip of a handwheel help you turn it slowly and steadily, which is important for tasks that need accuracy.

A hand crank works differently. You use it to turn rotary motion into another type of movement, such as linear or back-and-forth motion. This conversion allows you to lift, lower, or move objects with more force. Hand cranks do not provide the same level of precision as handwheels. Instead, they focus on speed and power, making them useful for tasks that need quick or repetitive motion.

Applications

You will find handwheels in industries that require careful control and high torque at low speeds. For example, large handwheels are common in power plants, chemical refineries, and water treatment facilities. Workers use them to open or close valves, often needing several turns to complete the task. These jobs can be physically demanding, so ergonomic design becomes important for safety and comfort.

Hand cranks appear in different settings. You often use them in equipment like winches, jacks, or manual machines where you need to convert rotary motion into linear or oscillating movement. Hand cranks work best for jobs that require fast cranking at lower torque, such as winding cables or raising small loads. You can reach speeds of 100–200 revolutions per minute with a hand crank, which makes them ideal for quick, repetitive tasks.

Note: Choose a handwheel for precise rotary control and a hand crank for fast, forceful motion conversion.

Handwheel Uses

Machinery Applications

You will find a handwheel in many types of machinery where precise manual control is important. In manufacturing, you often use handwheels on machine tools like lathes, milling machines, drill presses, and grinders. These devices help you adjust cutting speeds, feeds, and the position of workpieces with accuracy. On assembly lines, handwheels let you fine-tune conveyor speeds and adjust fixtures for repetitive tasks. Material handling equipment, such as cranes and hoists, also use handwheels for lifting and positioning loads safely.

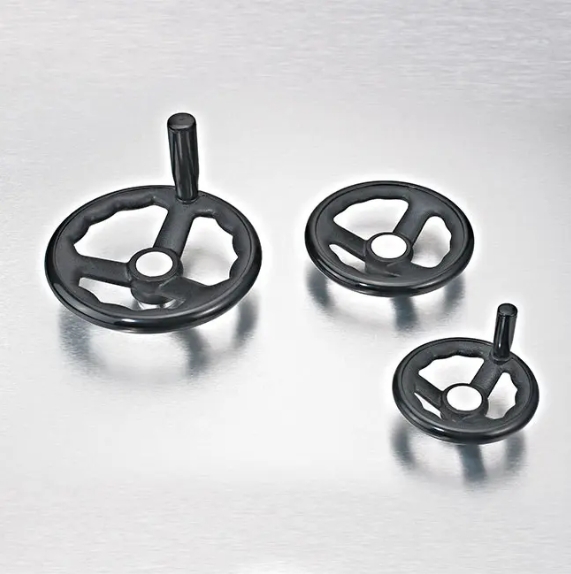

Foshan Grace Machinery Co., Ltd. offers a wide range of handwheels designed for these applications. You can choose from Bakelite three-spoked handwheels with handles, cast iron models for heavy-duty tasks, and lightweight plastic options for easy installation. Many of their handwheels feature ergonomic designs, such as revolving or fold-away handles, which help reduce fatigue during long shifts. Their products use high-quality materials like stainless steel, treated alloys, and Bakelite, giving you corrosion resistance and durability. Customers often report smoother operation and easier installation compared to other brands.

Tip: Select a handwheel with a revolving handle if you want smoother turning and less strain on your wrist.

Industry Examples

Handwheels play a key role in many industries. Here is a table showing common sectors and how you might use a handwheel in each one:

You will also see handwheels in the automotive, aerospace, electronics, and healthcare industries. In each case, you rely on the handwheel for smooth, accurate adjustments that keep machines running safely and efficiently.

Choosing

When to Use a Handwheel

You should choose a handwheel when you need precise manual control over machinery. Handwheels work best for tasks that require fine adjustments, such as setting the position of a milling machine table or regulating the flow in a valve. You can easily make small, controlled movements, which is important for safety and accuracy. Many handwheels come with ergonomic grips or revolving handles, so you can work comfortably for long periods.

When selecting a handwheel, consider the size and material. Small diameter handwheels are great for light tasks, while larger ones help you apply more force. Plastic handwheels resist chemicals and suit light-duty jobs. Cast iron or stainless steel options offer strength and durability for heavy-duty use. The style also matters. Spoked wheels are lighter and handle high torque, while solid wheels provide extra safety. Always match the handwheel to your application and environment.

Tip: Use a handwheel if you need to make gradual, precise changes or if you want a simple, reliable control method.

Here is a table to help you decide:

When to Use a Hand Crank

You should use a hand crank when you need to move or lift heavy loads quickly, especially in places without electric power. Hand cranks work well for winches, jacks, and other equipment that needs fast, repetitive motion. You get more leverage with a crank handle, so you can lift or pull heavier objects with less effort.

Hand cranks are the best choice in remote areas, harsh environments, or when electric systems are unreliable. For example, you might use a hand crank to start an engine in cold weather or to operate a winch on a boat. They are also common in construction, towing, and logging, where you need reliable manual control.

• Use a hand crank for:

• Lifting or pulling heavy loads

• Quick, repetitive movements

• Applications where electric power is not available

Note: Hand cranks give you speed and power, but they do not offer the same level of precision as a handwheel.

Choosing between a handwheel and a hand crank depends on your task. You need to look at the main differences:

You should match your tool to your needs. For precision, select a handwheel from a trusted brand like Foshan Grace Machinery Co., Ltd.

FAQ

What is the main purpose of a handwheel?

You use a handwheel to make precise adjustments or control rotary movement on machines. Handwheels help you set positions accurately, especially when you need smooth and steady control.

When should you choose a hand crank instead of a handwheel?

You should pick a hand crank when you need to lift, lower, or move something quickly. Hand cranks give you more leverage and speed, making them ideal for winches, jacks, or manual lifting tasks.

How do you select the right handwheel for your machine?

Tip: Check the size, material, and handle type. Choose a handwheel that fits your machine’s needs and your comfort. For heavy-duty work, select cast iron. For light tasks, plastic works well.

Can you replace a handwheel with a hand crank?

You should not replace a handwheel with a hand crank unless your machine needs fast, forceful motion. Handwheels work best for fine control. Hand cranks suit jobs that need quick or repetitive movement.

How do you maintain a handwheel for long life?

• Clean the handwheel regularly.

• Check for loose parts.

• Lubricate moving parts if needed.

• Inspect for cracks or wear.

Proper care helps your handwheel last longer and work smoothly.
